Description

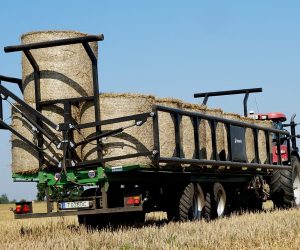

HYDRAULIC SIDES – MAXIMUM SAFETY IN THE SHORTEST TIME

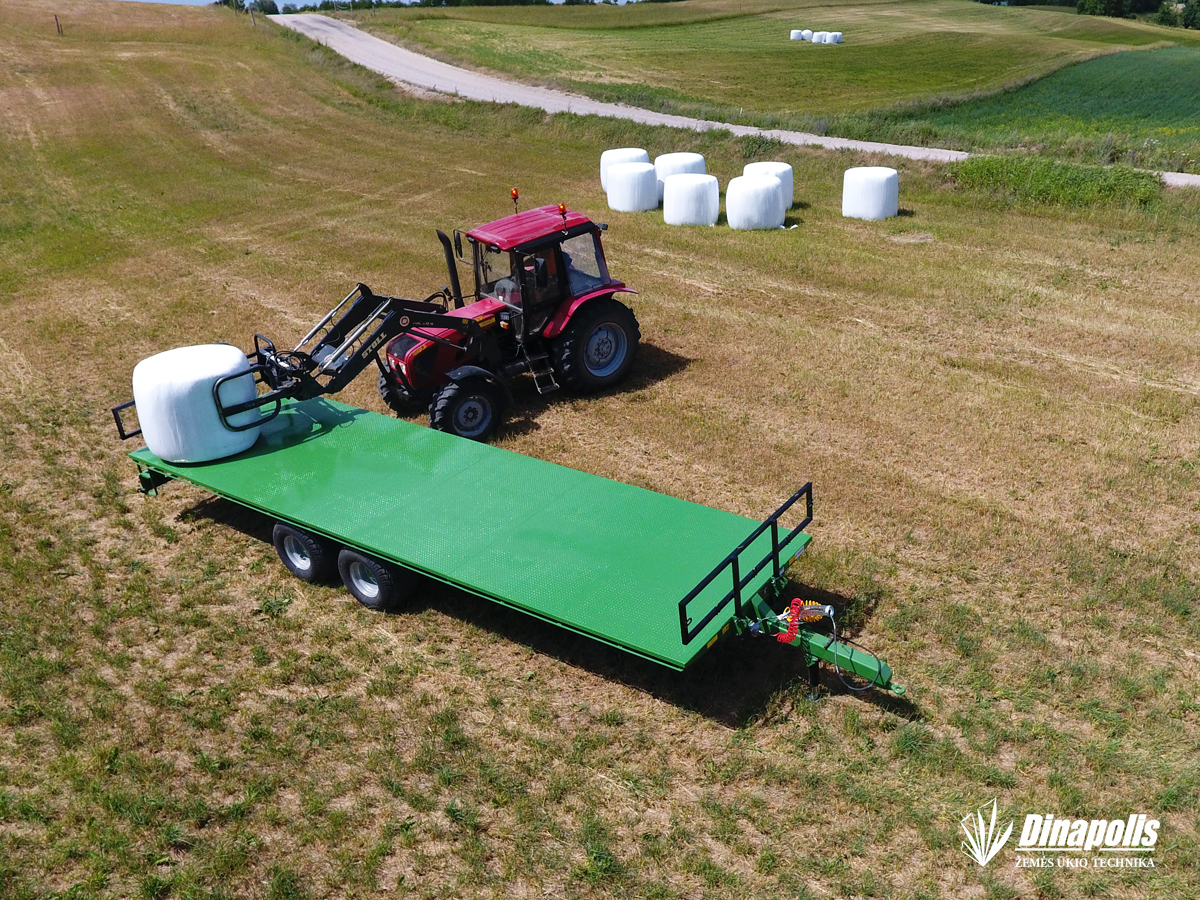

DINAPOLIS bale transport platforms are designed to transport various types of bales, both round and rectangular. The base of the platforms is made of a corrugated sheet, thus ensuring the stability of the bales during transportation. The platforms are designed according to customer needs. We can offer longer, shorter platforms for bales.
TECHNICAL DETAILS
| Model DINA | RP 07000 | RP 07400 | RP 07500 | RP 08000 | RP 08500 | RP 09000 | RP 09500 | RP10000 | RP10500 |
|---|---|---|---|---|---|---|---|---|---|
| Loading capacity, t | 16,8 | 16,9 | 17 | 17,1 / 21 | 17,3 / 21 | 17,6 / 21 | 18 / 21 | 18,15 / 21 | 18,3 / 21 |
| Producers declarated loading capacity | 14 | 14 | 14 | 14 / 20 | 14 / 20 | 14 / 20 | 14 / 20 | 14 / 20 | 14 / 20 |
| Trailer height with standard wheels, mm | 1132 | 1132 | 1132 | 1132 / 1332 | 1132 / 1332 | 1132 / 1332 | 1132 / 1332 | 1132 / 1332 | 1132 / 1332 |
| Platform lengh, mm | 7000 | 7400 | 7500 | 8000 | 8500 | 9000 | 9500 | 10 000 | 10 200 |
| Total platform lenght, mm | 9000 | 9400 | 9500 | 9800 | 10 300 | 10 800 | 11 400 | 11 800 | 12 000 |
| Platform width, mm | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 | 2500 |
| Suspension type | Sprung suspension | Sprung suspension | Sprung suspension | Sprung suspension | Sprung suspension | Sprung suspension | Sprung suspension | Sprung suspension | Sprung suspension |
| Brake system | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes | Air or hydraulic brakes |
| Standard wheels | 520/50-17 | 520/50-17 | 520/50-17 // | 520/50-17 // 550/45-22,5 | 520/50-17 // 550/45-22,5 | 520/50-17 // 550/45-22,5 | 520/50-17 // 550/45-22,5 | 520/50-17 // 550/45-22,5 | 520/50-17 // 550/45-22,5 |
*The maximum permissible total mass is set for use on general-purpose roads and may not exceed 21 t. The actual loading capacity of the semi-trailer or trailer may differ from the maximum permissible.
STANDARD SPECIFICATION
Front fence
Rear fence
Mechanical support leg
Corrugated metal bottom
ADDITIONAL OPTIONS

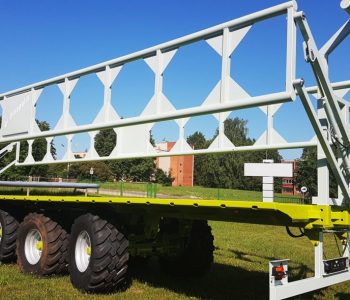

Hydraulic sides
Sprung drawbar
Folded support leg
Height changing eyelet
Steering rear axle
Air, hydraulic or double brakes
Rear towing eye with hydraulic, electric and brakes connections
