Bale platform with wheel in front DINA RPP

These trailers are for bale transportation and can be provided to customers as a standard type or with hydraulic sides. It allows to the transport of bales, square bales, euro-pallets and box-pallets in agriculture, cut and long logs of wood in forestry, other long material and a wide variety of other materials palletized or packed products, that are used in construction, industry, municipal services, trade, etc.

Description

TECHNICAL DETAILS

Model DINA RPP 9000 RPP 10 500
Total weight permitted by the manufacturer, t2021
Loading capacity permitted by the manufacturer, t,t2020
Trailer hight with standard wheels, mm12201220
Platform lenght, mm900010200
Total trailer lenght, mm1100012000
Tare weight, kg45004700
Platform width, mm25002500
Suspension typeOne axle in front+two axles in rearOne axle in front+two axles in rear
Brake systemsAir or hydraulicAir or hydraulic
Standard wheels520/50-17520/50-17
* Wheels as an option550/45-22,5550/45-22,5

BALE PLATFORMS – DINA RPPD

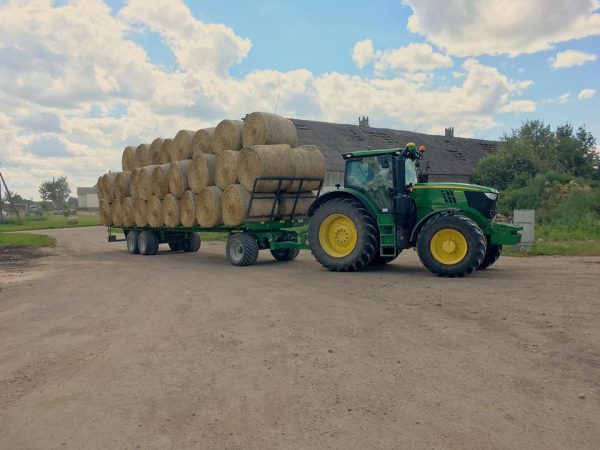

2. RPPD Dinapolis platforma su rulonais, rulonu transportavimo platforma
3. RPPD Dinapolis platforma su rulonais, rulonu transportavimo platforma

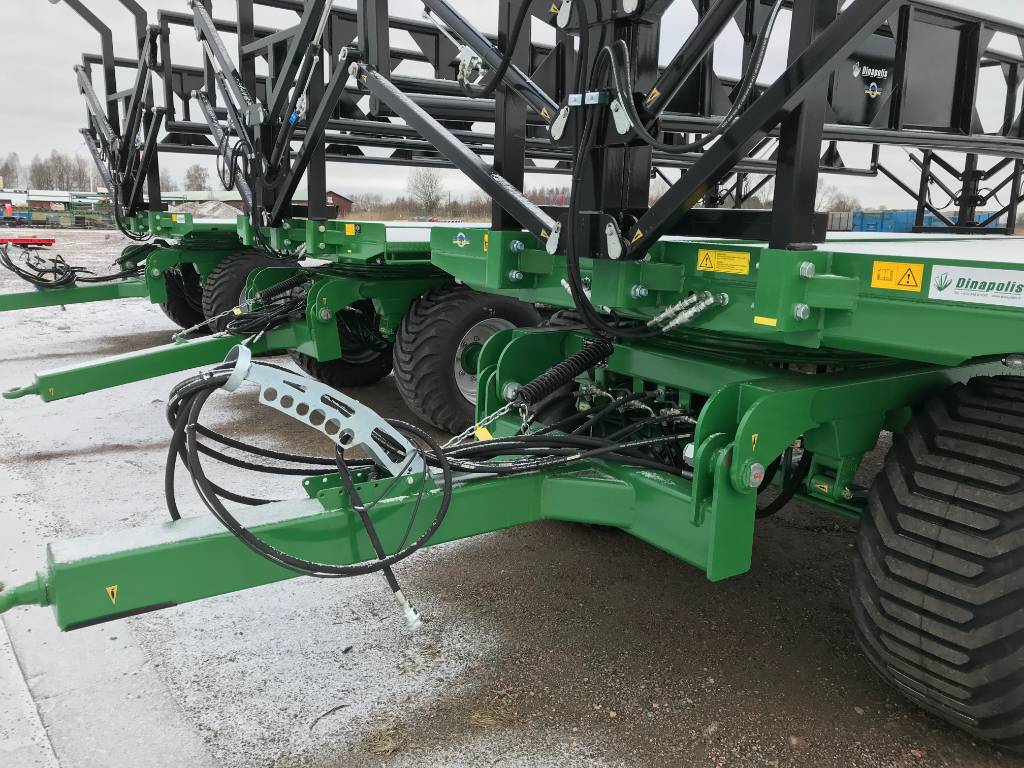

Dinapolis platforma puspriekabė trieju, dinapolis asiu su hidrauliniai šonai, platform for bales12

TECHNICAL DETAILS

Model DINARPPD 6500RPPD 7000RPPD 7400RPPD 7500RPPD 8000RPPD 8500RPPD 9000
Loading capacity permitted by the manufacturer, t16 / 1816 / 1816 / 1816 / 1816 / 1816 / 1816 / 18
Platform length, mm6500700074007500800085009000
Total trailer length, mm8000900094009500980010 30010 800
Tare weight, kg2800290029703000310032003300
Platform width, mm2550255025502550255025502550
Suspension typeOne axle in front + one axle in rearOne axle in front + one axle in rearOne axle in front + one axle in rearOne axle in front + one axle in rearOne axle in front + one axle in rearOne axle in front + one axle in rearOne axle in front + one axle in rear
Brake systemsAir or hydraulicAir or hydraulicAir or hydraulicAir or hydraulicAir or hydraulicAir or hydraulicAir or hydraulic
*Standard wheels - 16 t loading capacity520/50-17520/50-17520/50-17520/50-17520/50-17520/50-17520/50-17
*Standard wheels - 18 t loading capacity550/45-22,5550/45-22,5550/45-22,5550/45-22,5550/45-22,5550/45-22,5550/45-22,5

HYDRAULIC SIDE BELTS FOR ROLL FIXING

Hydraulic sides with belt locking allow you to lock different types of bales, both round, and square. The uniqueness of this fixation:

  • speed and safety;
  • different types of bales are securely fastened;
  • Easy to install the system;
  • Simple operation;

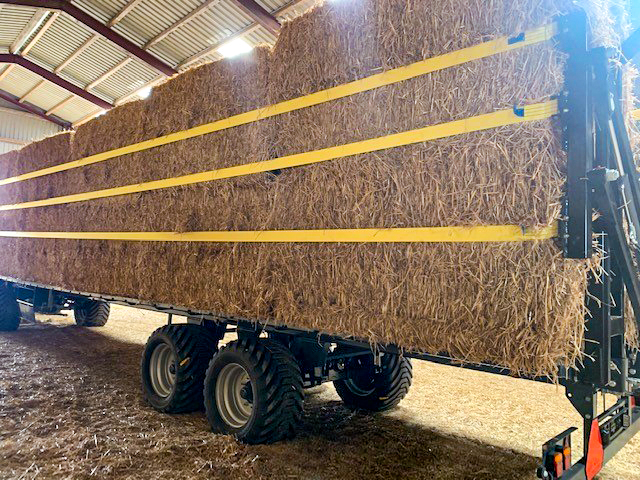

rppbelts
rpp belts
20210303_154514

STANDARD SPECIFICATION

priekis

Front fence

galas

Rear fence

20190814_080523

Single suspension with turntable in front

     Tandem suspension in rear

Rifliuotas dugnas Dinapolis platforma su rulonais, rulonu transportavimo platforma9

Corrugated metal bottom

ADDITIONAL OPTIONS

Rulonai transportuojami ypač saugiai su hidrauliniais platformos bortais

Hydraulic sides

rpp belts

Hydraulic sides with belts

Rulonai transportuojami ypač saugiai su hidrauliniais platformos bortais

Steering axle

Oriniai stabdziai

Air or combined brakes

Grain trailer DINA DP - DINAPOLIS tractor trailers

Rear towing eyelet with connections

    dinapolis
